FinancialChart for MVC is our industry-specific control that has been developed specifically for the finance industry. Derived from the MVC Edition FlexChart, this versatile data visualisation control has built-in capabilities to visualize and analyze financial data. FinancialChart also provides powerful interaction tools like Line Markers to display data at cross section, range selector to drill through financial data over a period. In this blog we will understand how to:

  • Get Started with FinancialChart
  • DataBinding
  • Using built in Interaction
  • Adding Analytics

Getting Started

The easiest way to get started with FinancialChart is to use the C1 ASP.NET MVC application template.

  • In Visual Studio click File->New Project->Web-> Select C1 ASP.NET MVC5 Application template.

ComponentOne Studio FinancialChart Wizard

  • Give a name to the project and click OK.
  • The ComponentOne ASP.NET MVC Application Wizard shows up.
  • Select "Include C1 MVC Finance Library" and click OK.

ComponentOne Studio FinancialChart Add Finance library to project Add Finance library to project. This above step does the following:

  • Configures the project, add references for C1.Web.Mvc.Finance dll and it's dependency C1.Web.Mvc.
  • Creates a Licenses.licx file and adds License entry


C1.Web.Mvc.LicenseDetector, C1.Web.Mvc
C1.Web.Mvc.Finance.LicenseDetector, C1.Web.Mvc.Finance


  • Adds following namespace to Views web.config to enable Intellisense.


<add namespace="C1.Web.Mvc" />
<add namespace="C1.Web.Mvc.Fluent" />
<add namespace="C1.Web.Mvc.Finance" />
<add namespace="C1.Web.Mvc.Finance.Fluent" />


Registers resources inside _Layout.cshtml. Any view using this layout file will be able to use the resources.



@Html.C1().Resources("default")
@Html.C1().FinanceResources()


Now that we have the project configured, let's add some Model and data to visualise inside FinancialChart. For demo purposes, this sample uses financial data from a JSON file named BOX.JSON.

Data



[
{ "date": "01/23/15", "open": 20.2, "high": 24.73, "low": 20.16, "close": 23.23, "volume": 42593223 },
{ "date": "01/26/15", "open": 23.67, "high": 24.39, "low": 22.5, "close": 22.6, "volume": 8677164 },
{ "date": "01/27/15", "open": 22, "high": 22.47, "low": 21.17, "close": 21.3, "volume": 3272512 },
{ "date": "01/28/15", "open": 21.62, "high": 21.84, "low": 19.6, "close": 19.78, "volume": 5047364 },
{ "date": "01/29/15", "open": 19.9, "high": 19.95, "low": 18.51, "close": 18.8, "volume": 3419482 },
{ "date": "01/30/15", "open": 18.47, "high": 19.48, "low": 18.22, "close": 18.81, "volume": 2266439 },
{ "date": "02/02/15", "open": 19.18, "high": 19.3, "low": 18.01, "close": 18.02, "volume": 2071168 },
{ "date": "02/03/15", "open": 18.22, "high": 18.64, "low": 18.12, "close": 18.24, "volume": 1587435 },
{ "date": "02/04/15", "open": 18.2, "high": 18.35, "low": 17, "close": 17.1, "volume": 2912224 },
{ "date": "02/05/15", "open": 17.3, "high": 17.31, "low": 16.41, "close": 16.66, "volume": 2682187 },
{ "date": "02/06/15", "open": 17.39, "high": 18.88, "low": 17.21, "close": 18.12, "volume": 3929164 },
{ "date": "02/09/15", "open": 18.86, "high": 19.95, "low": 18.45, "close": 19.6, "volume": 3226650 },
{ "date": "02/10/15", "open": 20.5, "high": 21, "low": 19.63, "close": 20.99, "volume": 2804409 },
{ "date": "02/11/15", "open": 20.89, "high": 21, "low": 20.2, "close": 20.96, "volume": 1698365 },
{ "date": "02/12/15", "open": 20.66, "high": 20.85, "low": 19.75, "close": 20.17, "volume": 1370320 },
{ "date": "02/13/15", "open": 20.19, "high": 20.68, "low": 20, "close": 20.18, "volume": 711951 },
{ "date": "02/17/15", "open": 19.5, "high": 20.1, "low": 18.8, "close": 19.05, "volume": 2093602 },
{ "date": "02/18/15", "open": 18.31, "high": 18.5, "low": 17.96, "close": 18, "volume": 1849490 },
{ "date": "02/19/15", "open": 18.33, "high": 19.25, "low": 17.91, "close": 18.96, "volume": 1311518 },
{ "date": "02/20/15", "open": 18.68, "high": 19.3, "low": 18.65, "close": 18.85, "volume": 1001692 },
{ "date": "02/23/15", "open": 18.8, "high": 18.89, "low": 18.11, "close": 18.21, "volume": 670087 },
{ "date": "02/24/15", "open": 18.46, "high": 19, "low": 18.27, "close": 18.83, "volume": 759263 },
{ "date": "02/25/15", "open": 18.83, "high": 19.48, "low": 18.47, "close": 18.67, "volume": 915580 },
{ "date": "02/26/15", "open": 18.64, "high": 19.2, "low": 18.64, "close": 18.94, "volume": 461283 },
{ "date": "02/27/15", "open": 18.8, "high": 19.12, "low": 18.55, "close": 18.66, "volume": 617199 },
{ "date": "03/02/15", "open": 18.66, "high": 19.09, "low": 18.65, "close": 18.79, "volume": 519605 },
{ "date": "03/03/15", "open": 18.79, "high": 19.21, "low": 18.45, "close": 18.59, "volume": 832415 },
{ "date": "03/04/15", "open": 18.64, "high": 19.05, "low": 18.32, "close": 19, "volume": 539688 },
{ "date": "03/05/15", "open": 19.2, "high": 19.2, "low": 18.8, "close": 19.14, "volume": 486149 },
{ "date": "03/06/15", "open": 19.03, "high": 19.1, "low": 18.7, "close": 18.91, "volume": 685659 },
{ "date": "03/09/15", "open": 18.98, "high": 20.15, "low": 18.96, "close": 19.4, "volume": 1321363 },
{ "date": "03/10/15", "open": 19.3, "high": 19.8, "low": 18.85, "close": 19.64, "volume": 615743 },
{ "date": "03/11/15", "open": 20.08, "high": 20.65, "low": 19.24, "close": 20.53, "volume": 2167167 },
{ "date": "03/12/15", "open": 17.17, "high": 18.2, "low": 16.76, "close": 18.2, "volume": 6837638 },
{ "date": "03/13/15", "open": 18.05, "high": 18.05, "low": 17.3, "close": 17.88, "volume": 1715629 },
{ "date": "03/16/15", "open": 17.91, "high": 18, "low": 17.01, "close": 17.13, "volume": 1321313 },
{ "date": "03/17/15", "open": 17.28, "high": 17.37, "low": 16.6, "close": 17.12, "volume": 1272242 },
{ "date": "03/18/15", "open": 17.1, "high": 17.27, "low": 16.91, "close": 17.01, "volume": 530063 },
{ "date": "03/19/15", "open": 17, "high": 17.28, "low": 17, "close": 17.06, "volume": 536427 },
{ "date": "03/20/15", "open": 17.13, "high": 17.24, "low": 16.88, "close": 17.21, "volume": 1320237 },
{ "date": "03/23/15", "open": 17.21, "high": 17.23, "low": 17.01, "close": 17.11, "volume": 509798 },
{ "date": "03/24/15", "open": 17.02, "high": 17.18, "low": 16.82, "close": 17, "volume": 962149 },
{ "date": "03/25/15", "open": 16.92, "high": 16.99, "low": 16.82, "close": 16.97, "volume": 565673 },
{ "date": "03/26/15", "open": 16.83, "high": 17.56, "low": 16.83, "close": 17.54, "volume": 884523 },
{ "date": "03/27/15", "open": 17.58, "high": 18.3, "low": 17.11, "close": 18.3, "volume": 705626 },
{ "date": "03/30/15", "open": 18.5, "high": 19.4, "low": 18.4, "close": 19.05, "volume": 1151620 },
{ "date": "03/31/15", "open": 19.08, "high": 20.58, "low": 18.4, "close": 19.75, "volume": 2020679 },
{ "date": "04/01/15", "open": 19.69, "high": 19.69, "low": 18.55, "close": 18.65, "volume": 961078 },
{ "date": "04/02/15", "open": 18.56, "high": 18.66, "low": 17.85, "close": 17.9, "volume": 884233 },
{ "date": "04/06/15", "open": 17.78, "high": 17.94, "low": 17.51, "close": 17.66, "volume": 605252 },
{ "date": "04/07/15", "open": 17.62, "high": 17.9, "low": 17.53, "close": 17.61, "volume": 591988 },
{ "date": "04/08/15", "open": 17.64, "high": 17.85, "low": 17.32, "close": 17.36, "volume": 618855 },
{ "date": "04/09/15", "open": 17.33, "high": 17.54, "low": 17.1, "close": 17.1, "volume": 761855 },
{ "date": "04/10/15", "open": 17.08, "high": 17.36, "low": 17, "close": 17.05, "volume": 568373 },
{ "date": "04/13/15", "open": 17.24, "high": 17.26, "low": 16.81, "close": 17.1, "volume": 667142 },
{ "date": "04/14/15", "open": 17.1, "high": 17.89, "low": 17.02, "close": 17.52, "volume": 870138 },
{ "date": "04/15/15", "open": 17.6, "high": 17.99, "low": 17.5, "close": 17.69, "volume": 530456 },
{ "date": "04/16/15", "open": 17.95, "high": 18, "low": 17.6, "close": 17.82, "volume": 548730 },
{ "date": "04/17/15", "open": 17.75, "high": 17.79, "low": 17.5, "close": 17.79, "volume": 446373 },
{ "date": "04/20/15", "open": 17.63, "high": 17.98, "low": 17.52, "close": 17.93, "volume": 487017 },
{ "date": "04/21/15", "open": 17.96, "high": 17.98, "low": 17.71, "close": 17.92, "volume": 320302 },
{ "date": "04/22/15", "open": 17.88, "high": 18.33, "low": 17.57, "close": 18.29, "volume": 644812 },
{ "date": "04/23/15", "open": 18.29, "high": 18.61, "low": 18.18, "close": 18.28, "volume": 563879 },
{ "date": "04/24/15", "open": 18.5, "high": 18.5, "low": 17.61, "close": 17.75, "volume": 650762 },
{ "date": "04/27/15", "open": 17.97, "high": 18.05, "low": 17.45, "close": 17.57, "volume": 437294 },
{ "date": "04/28/15", "open": 17.65, "high": 17.79, "low": 17.39, "close": 17.5, "volume": 224519 },
{ "date": "04/29/15", "open": 17.68, "high": 17.68, "low": 17.1, "close": 17.21, "volume": 495706 },
{ "date": "04/30/15", "open": 17.22, "high": 17.3, "low": 17, "close": 17.11, "volume": 391040 },
{ "date": "05/01/15", "open": 17.11, "high": 17.55, "low": 16.85, "close": 17.5, "volume": 563075 },
{ "date": "05/04/15", "open": 17.56, "high": 17.85, "low": 17.3, "close": 17.4, "volume": 253138 },
{ "date": "05/05/15", "open": 17.68, "high": 17.68, "low": 17.09, "close": 17.43, "volume": 290935 },
{ "date": "05/06/15", "open": 17.48, "high": 17.48, "low": 17, "close": 17.04, "volume": 313662 },
{ "date": "05/07/15", "open": 17.05, "high": 17.19, "low": 16.92, "close": 17.04, "volume": 360284 },
{ "date": "05/08/15", "open": 17.13, "high": 17.21, "low": 16.91, "close": 17.1, "volume": 297653 },
{ "date": "05/11/15", "open": 17.16, "high": 17.44, "low": 17.13, "close": 17.31, "volume": 268504 },
{ "date": "05/12/15", "open": 17.28, "high": 17.44, "low": 16.99, "close": 17.24, "volume": 376961 },
{ "date": "05/13/15", "open": 17.24, "high": 17.3, "low": 17.06, "close": 17.2, "volume": 244617 },
{ "date": "05/14/15", "open": 17.24, "high": 17.25, "low": 17.02, "close": 17.08, "volume": 252526 },
{ "date": "05/15/15", "open": 17.06, "high": 17.16, "low": 16.95, "close": 16.95, "volume": 274783 },
{ "date": "05/18/15", "open": 16.95, "high": 17.01, "low": 16.76, "close": 16.87, "volume": 418513 },
{ "date": "05/19/15", "open": 16.93, "high": 16.94, "low": 16.6, "close": 16.83, "volume": 367660 },
{ "date": "05/20/15", "open": 16.8, "high": 16.9, "low": 16.65, "close": 16.86, "volume": 297914 },
{ "date": "05/21/15", "open": 16.9, "high": 17.08, "low": 16.79, "close": 16.88, "volume": 229346 },
{ "date": "05/22/15", "open": 16.9, "high": 17.05, "low": 16.85, "close": 17, "volume": 253279 },
{ "date": "05/26/15", "open": 17.03, "high": 17.08, "low": 16.86, "close": 17.01, "volume": 212640 },
{ "date": "05/27/15", "open": 17.01, "high": 17.99, "low": 16.87, "close": 17.75, "volume": 857109 },
{ "date": "05/28/15", "open": 17.77, "high": 17.77, "low": 17.44, "close": 17.62, "volume": 338482 }
]


Model

This example uses a simple model of stock data.


 public class FinanceData
    {
        public DateTime X { get; set; }
        public double High { get; set; }
        public double Low { get; set; }
        public double Open { get; set; }
        public double Close { get; set; }
        public double Volume { get; set; }
    }

Next, we need a repository to get data.


 public class BoxData
    {
        public static List GetDataFromJson() {
            string path=HttpContext.Current.Server.MapPath("~/Content/box.json");
            string jsonText=new StreamReader(path, System.Text.Encoding.Default).ReadToEnd();
            JArray ja = (JArray)JsonConvert.DeserializeObject(jsonText);
            List list = new List();
            foreach (var obj in ja) {
                DateTime date = Convert.ToDateTime(obj["date"].ToString());
                double high = Convert.ToDouble(obj["high"].ToString());
                double low = Convert.ToDouble(obj["low"].ToString());
                double open = Convert.ToDouble(obj["open"].ToString());
                double close = Convert.ToDouble(obj["close"].ToString());
                double volume = Convert.ToDouble(obj["volume"].ToString());
                list.Add(new FinanceData { X = date, High = high, Low = low, Open = open, Close = close, Volume = volume });
            }
            return list;
        }
     }

Controller

  • Add Controller, Right Click Controllers Folder->Add New Scaffolded Item->Add Controller.
  • Name the controller as FinanceController.
  • Add Namespace for Model in the controller.
  • Return Model data from "BoxData" repository in the "Index action"


    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Web;
    using System.Web.Mvc;
    using FinanceDemo.Models;
    namespace FinanceDemo.Controllers
    {
        public class FinanceController : Controller
        {
            // GET: Finance
            public ActionResult Index()
            {
                var model = BoxData.GetDataFromJson();
                return View(model);
            }
        }
    }



    Visualize Data

  • Add View, right-click Finance Folder inside View -> Add View -> Name View as "Index".

  • Inside the view, Add Namespace for Model.
  • Declare model variable for List of "FinanceData".
  • Initialize FinancialChart in the View.
  • Bind Chart by setting Bind property to Model./li>
  • Set the BindingX property to "X" property of FinanceData, which is of type DateTime.
  • Set ChartType to "HeikinAshi".
  • Add Series, set its binding to "High,Low,Open,Close".

@using FinanceDemo.Models
@model List
@{
    ViewBag.Title = "Index";
}


Index
-----



@(Html.C1().FinancialChart()
.Bind(Model)
.BindingX("X")
.ChartType(C1.Web.Mvc.Finance.ChartType.HeikinAshi)
        .Series(ser =>
        {
            ser.Add().Binding("High,Low,Open,Close");
        })
   )

Interaction

Add Line Markers to display data points when the mouse is hovered over the data series. In FinancialChart, you can add line markers using AddLineMarker method. Markers also support optional vertical and horizontal lines to enable a cross-hair effect.


<script><br/>&nbsp;&nbsp;&nbsp;&nbsp;function&nbsp;lineMarkerContent(ht,&nbsp;pt)&nbsp;{<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;var&nbsp;item&nbsp;=&nbsp;ht.series.collectionView.items[ht.pointIndex];<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;if&nbsp;(item)&nbsp;{<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;return&nbsp;'Date:&nbsp;'&nbsp;+&nbsp;wijmo.Globalize.format(ht.x,&nbsp;'MMM-dd')&nbsp;+&nbsp;'<br/>'&nbsp;+<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;'High:&nbsp;'&nbsp;+&nbsp;item.High.toFixed()&nbsp;+&nbsp;'<br/>'&nbsp;+<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;'Low:&nbsp;'&nbsp;+&nbsp;item.Low.toFixed()&nbsp;+&nbsp;'<br/>'&nbsp;+<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;'Open:&nbsp;'&nbsp;+&nbsp;item.Open.toFixed()&nbsp;+&nbsp;'<br/>'&nbsp;+<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;'Close:&nbsp;'&nbsp;+&nbsp;item.Close.toFixed()&nbsp;+&nbsp;'<br/>'&nbsp;+<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;'Volume:&nbsp;'&nbsp;+&nbsp;item.Volume.toFixed();<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;}<br/>&nbsp;&nbsp;&nbsp;&nbsp;}<br/></script>
@(Html.C1().FinancialChart()
.Bind(Model)
.BindingX("X")
.ChartType(C1.Web.Mvc.Finance.ChartType.HeikinAshi)
        .Series(ser =>
        {
            ser.Add().Binding("High,Low,Open,Close");
        })
        .AddLineMarker(lm => lm
        .Alignment(C1.Web.Mvc.Chart.LineMarkerAlignment.Auto)
        .Lines(C1.Web.Mvc.Chart.LineMarkerLines.Both)
        .DragContent(true)
        .Interaction(C1.Web.Mvc.Chart.LineMarkerInteraction.Move).Content("lineMarkerContent")))

)

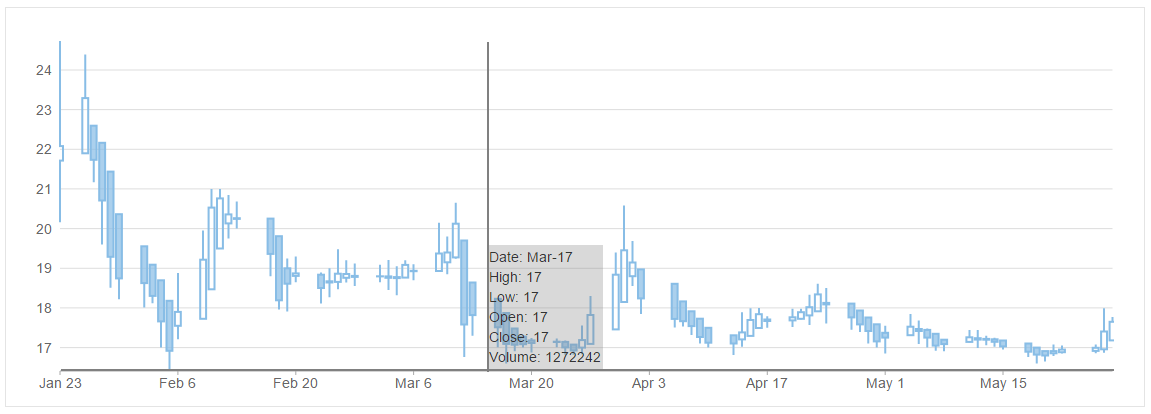

ShowMarkers FinancialChart also supports range selectors to drill through data over a period. Range Selector Demo>>

Analytics

FinancialChart has various analytic tools, you could apply Moving Average to analyze data points by creating a series of averages of different subsets of the full data set. TrendLines to represent trends in data and to examine problems of prediction. Fibonacci tool enables the calculation and plotting of various alert levels that are useful in financial charts. This example shows how to configure a Exponential Moving Average over a Line chart


@(Html.C1().FinancialChart()
.Bind(Model)
.BindingX("X")
.ChartType(C1.Web.Mvc.Finance.ChartType.Line)
        .Series(ser =>
        {
            ser.Add().Binding("High,Low,Open,Close");
          ser.AddMovingAverage().Binding("Close").Type(C1.Web.Mvc.Chart.MovingAverageType.Exponential);
            })
        .AddLineMarker(lm => lm
        .Alignment(C1.Web.Mvc.Chart.LineMarkerAlignment.Auto)
        .Lines(C1.Web.Mvc.Chart.LineMarkerLines.Both)
        .DragContent(true)
        .Interaction(C1.Web.Mvc.Chart.LineMarkerInteraction.Move).Content("lineMarkerContent"))

)

Moving Average Moving Average The analytics is built into the series of FinancialChart, similar to Moving Average example a Fibonacci Tool can be added to the series collection as below:

ser.AddFibonacci().Binding("Close").Uptrend(true);

A TrendLine for "Close" can be added to the series collection as below:

ser.AddTrendLine().Binding("Close");

Learning Resources

View FinancialChart Explorer Sample >>
View ASPNET5 FinancialChart Explorer Sample >>
View StockChart Demo >>
Refer Documentation >>
See more FinancialChart news >>
Download ComponentOne Studio
