MultiColumn Sorting in ComponentOne TrueDbGrid

There comes a time where you may find yourself wanting to sort multiple columns based on a sort condition to display data. The C1Flexgrid has an "AllowSorting" property, which defines whether the sorting is to be applied on Single Columns or MultipleColumns. In C1TrueDbGrid this can be achieved by disabling the in-built sorting and applying Custom sorting. The first step is to bind the C1TrueDbGrid with Orders, table of C1NwindDB, which is availble with the ComponentOne Studio for Winforms. To implement Custom sorting, we will need handle the sorting ourselves in the grid's HeadClick event. We can do this by setting AllowSort to False and make the column headers behave like buttons. The DataColumn.Tag property of grid's DisplayColumn will store the SortDirection information. Also, we need an enum 'SortDir' to save the sort direction (Ascending/Descending/None) and a static variable sortCondition which will store the sort condition. In addition, we will use 2 variables to store the sorting images. The code looks like this:

//SortDir
 public enum SortDir
 {
 None,
 Asc,
 Desc
 }

 private Bitmap _sortup;
 private Bitmap _sortdn;
 private static string sortCondition = string.Empty
private void Form1_Load(object sender, EventArgs e)
 {
 OleDbConnection1.ConnectionString = GetModifiedConnectionString(this.OleDbConnection1.ConnectionString);
 OleDbDataAdapter1.Fill(this.dataSet11);
 C1TrueDBGrid1.DataSource = this.dataSet11.Tables[0].DefaultView;
 // we're going to handle the sorting ourselves in the grids headclick event
 this.C1TrueDBGrid1.AllowSort = false;

 foreach (C1.Win.C1TrueDBGrid.C1DisplayColumn dc in C1TrueDBGrid1.Splits[0].DisplayColumns)
 {
 // make the column headers act like buttons
 dc.ButtonHeader = true;
 // default sort order
 dc.DataColumn.Tag = SortDir.None;
 }
 _sortdn = new Bitmap("..//..//SortDn.bmp");
 _sortup = new Bitmap("..//..//SortUp.bmp");
 _sortdn.MakeTransparent(Color.White);
 _sortup.MakeTransparent(Color.White);
 }


The GetModifiedConnectionString() method here returns the connectionstring of the database. The function is as follows :

private string GetModifiedConnectionString(string connstring)
{
    int dataSource = connstring.IndexOf("Data Source=", 0, StringComparison.OrdinalIgnoreCase);
    int dataSourceEnd = connstring.LastIndexOf("\\\", connstring.IndexOf(";", dataSource));
    connstring = connstring.Substring(0, dataSource)   "Data Source="   Environment.GetFolderPath(Environment.SpecialFolder.Personal)   "\\\ComponentOne Samples\\\Common"   connstring.Substring(dataSourceEnd);
    return connstring;
}

The next and most important step in our sample is to implement multiple column sorting. To do this we will subscribe C1TruDbgrid's HeadClick event, the event that gets fired whenever the column header is clicked. For Custom Sorting we would need to get the SortCondition for the grid and then apply it. In the beginning we will get the Sort Direction of the column that is clicked. This information is available in the DataColumn.Tag property. The SortImage is shown for the selected column when actions are steered in this directon and set the image position by setting the DisplayColumn.ForeGroundPicturePosition property. The sort position is again saved in the DataColumn.Tag property. The code should look like following:

C1.Win.C1TrueDBGrid.C1DisplayColumn dc = this.C1TrueDBGrid1.Splits[0].DisplayColumns[e.ColIndex];
 // new sort order
 SortDir newsort = (SortDir)dc.DataColumn.Tag;
 switch (newsort)
 {
 case SortDir.None:
 newsort = SortDir.Asc;
 dc.HeadingStyle.ForegroundImage = this._sortup; //update image
 break;

 case SortDir.Asc:
 newsort = SortDir.Desc;
 dc.HeadingStyle.ForegroundImage = this._sortdn; //update image
 break;

 case SortDir.Desc:
 newsort = SortDir.None;
 dc.HeadingStyle.ForegroundImage = null;
 break;
 }

 // indicators go to the right of text
 dc.HeadingStyle.ForeGroundPicturePosition = C1.Win.C1TrueDBGrid.ForeGroundPicturePositionEnum.RightOfText;

 // save the sort state
 dc.DataColumn.Tag = newsort;


Once this is done, we need to uncover whether or not the data field already contains a sort criteria in existing sortCondition. If the data field does not have any sort criteria, then we will to check if the sortCondition is empty or not. When the SortCondition is empty we will we set the Sort condition to the DataField, and if it is not, we will append the datafield to the existing sort criteria. Once this is done we need to specify the sortDirection to the sort criteria. If the datafield has a sort criteria, we will find the position of the data field and check for the sort direction. If the desired sort direction is ASC or DESC, then we will append to the sort condition. If the desired direction is None, then we would simply remove the datafield from the sortCondition. The code will look like following :

//find if data field already has a sort criteria in existing sortCondition
 int posOfFieldName = sortCondition.IndexOf(dc.DataColumn.DataField);

 if (posOfFieldName == -1)
 {
 //if data field is not found and doesn't have an existing sort criteria
 if (sortCondition == string.Empty)
 {
 sortCondition = dc.DataColumn.DataField + " ";
 }
 else
 {
 sortCondition += "," + dc.DataColumn.DataField + " ";
 }
 sortCondition += dc.DataColumn.Tag.Equals(SortDir.Desc) ? "DESC " : "ASC ";
 }
 else
 {
 int startPosOfFirstSpace = sortCondition.IndexOf(" ", posOfFieldName + 1);
 int startPosOfSecondSpace = sortCondition.IndexOf(" ", startPosOfFirstSpace + 1);
 sortCondition = sortCondition.Remove(posOfFieldName, startPosOfSecondSpace - posOfFieldName + 1);
 if (newsort != SortDir.None)
 {
 sortCondition = sortCondition.Insert(posOfFieldName, dc.DataColumn.DataField.ToString() + " " + (dc.DataColumn.Tag.Equals(SortDir.Desc) ? "DESC " : "ASC "));
 }
 if (posOfFieldName > 0 && sortCondition.Length == posOfFieldName)
 {
 //if there is no field ahead then remove the previous comma also
 sortCondition = sortCondition.Remove(posOfFieldName - 1, 1);

 }
 else if (sortCondition != string.Empty && sortCondition.Substring(posOfFieldName, 1) == ",")
 {
 if (posOfFieldName > 0)
 {
 sortCondition = sortCondition.Remove(posOfFieldName, 1);
 }
 else if (posOfFieldName == 0)
 {
 sortCondition = sortCondition.Remove(posOfFieldName, 1);
 }
 }
 }

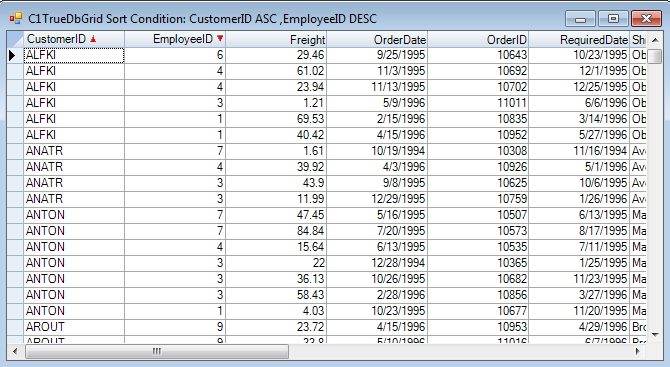

Now the only thing left is to apply the sortCondition to the datasource of C1TdbGrid and our grid will sort accordingly. We can also show the SortCondition in the form's title. [cshar]// sort the grid this.dataSet11.Tables[0].DefaultView.Sort = sortCondition; this.Text = "C1TrueDbGrid Sort Condition: " + (sortCondition!=""?sortCondition: "None");[/csharp] Hence, our HeadClick event will have the following code :

// my own custom sorting when a column header is pressed
 private void C1TrueDBGrid1_HeadClick(object sender, C1.Win.C1TrueDBGrid.ColEventArgs e)
 {
 // get the display column that was clicked
 {
 C1.Win.C1TrueDBGrid.C1DisplayColumn dc = this.C1TrueDBGrid1.Splits[0].DisplayColumns[e.ColIndex];
 // new sort order
 SortDir newsort = (SortDir)dc.DataColumn.Tag;
 switch (newsort)
 {
 case SortDir.None:
 newsort = SortDir.Asc;
 dc.HeadingStyle.ForegroundImage = this._sortup; //update image
 break;

 case SortDir.Asc:
 newsort = SortDir.Desc;
 dc.HeadingStyle.ForegroundImage = this._sortdn; //update image
 break;

 case SortDir.Desc:
 newsort = SortDir.None;
 dc.HeadingStyle.ForegroundImage = null;
 break;
 }

 // indicators go to the right of text
 dc.HeadingStyle.ForeGroundPicturePosition = C1.Win.C1TrueDBGrid.ForeGroundPicturePositionEnum.RightOfText;

 // save the sort state
 dc.DataColumn.Tag = newsort;

 //find if data field already has a sort criteria in existing sortCondition
 int posOfFieldName = sortCondition.IndexOf(dc.DataColumn.DataField);

 if (posOfFieldName == -1)
 {
 //if data field is not found and doesn't have an existing sort criteria
 if (sortCondition == string.Empty)
 {
 sortCondition = dc.DataColumn.DataField + " ";
 }
 else
 {
 sortCondition += "," + dc.DataColumn.DataField + " ";
 }
 sortCondition += dc.DataColumn.Tag.Equals(SortDir.Desc) ? "DESC " : "ASC ";
 }
 else
 {
 int startPosOfFirstSpace = sortCondition.IndexOf(" ", posOfFieldName + 1);
 int startPosOfSecondSpace = sortCondition.IndexOf(" ", startPosOfFirstSpace + 1);
 sortCondition = sortCondition.Remove(posOfFieldName, startPosOfSecondSpace - posOfFieldName + 1);
 if (newsort != SortDir.None)
 {
 sortCondition = sortCondition.Insert(posOfFieldName, dc.DataColumn.DataField.ToString() + " " + (dc.DataColumn.Tag.Equals(SortDir.Desc) ? "DESC " : "ASC "));
 }
 if (posOfFieldName > 0 && sortCondition.Length == posOfFieldName)
 {
 //if there is no field ahead then remove the previous comma also
 sortCondition = sortCondition.Remove(posOfFieldName - 1, 1);

 }
 else if (sortCondition != string.Empty && sortCondition.Substring(posOfFieldName, 1) == ",")
 {
 if (posOfFieldName > 0)
 {
 sortCondition = sortCondition.Remove(posOfFieldName, 1);
 }
 else if (posOfFieldName == 0)
 {
 sortCondition = sortCondition.Remove(posOfFieldName, 1);
 }
 }
 }

 // sort the grid
 this.dataSet11.Tables[0].DefaultView.Sort = sortCondition;
 this.Text = "C1TrueDbGrid Sort Condition: " + (sortCondition!=""?sortCondition: "None");
 }
 }

Download Sample_MultiColumnSort
