ActiveReport13 : Report not show when deploy on web server.

Posted by: puttinan on 10 April 2019, 2:19 pm EST

  • Posted 10 April 2019, 2:19 pm EST

    Hi

    I'm just buy active report 13 (Pro). We have a project to convert active report 1 to active report 13 in our MVC web application. (It produced fine result as "localhost_result.png" on localhost -- IISExpress)

    Coding on Controller


    namespace SBLReport.Controllers
    {
    public class HomeController : Controller
    {
    public FileStreamResult SBL_Statement(string client, string date)
    {
    Report.StatementReport rpt = new Report.StatementReport(client, date);
    rpt.Run();
    MemoryStream pdfRptStream = new MemoryStream();
    var pdfExport = new GrapeCity.ActiveReports.Export.Pdf.Section.PdfExport();
    pdfExport.Export(rpt.Document, pdfRptStream);
    pdfRptStream.Position = 0;
    return File(pdfRptStream, "application/pdf");
    }
    }
    }


    Problem

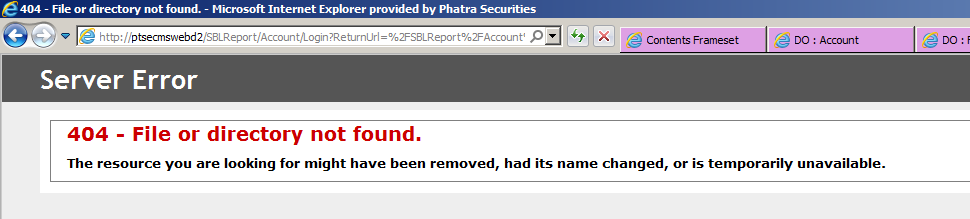

    After we deploy on web server application, it showed only "404 - File or directory not found" message (as “server_result.png”).

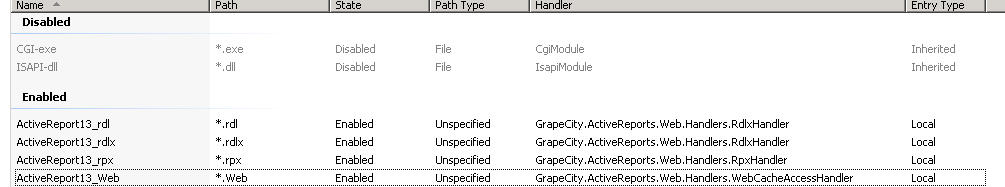

    We have already add 4 managed handler (*.Web, *.rpx, *.rdlx, .*rdl) on our web application. (as show in "server_setup.png")

    Problem
    After we deploy on web server application, it showed only "404 - File or directory not found" message (as “server_result.png”).
    And we notice that web URL is assigned to “http://[WebServerName]/sblreport/Account/Login?ReturnUrl=%2Fsblreport%2FAccount%2FLogin%3FReturnUrl%3D%252Fsblreport%252FAccount%252FLogin%253FReturnUrl%253D%25252Fsblreport%25252FAccount%25252FLogin%25253FReturnUrl%25253D%2525252Fsblreport%2525252FAccount%2525252FLogin%2525253FReturnUrl%2525253D%252525252Fsblreport%252525252FAccount%252525252FLogin%252525253FReturnUrl%252525253D%25252525252Fsblreport%25252525252FAccount%25252525252FLogin%25252525253FReturnUrl%25252525253D%2525252525252Fsblreport%2525252525252FAccount%2525252525252FLogin%2525252525253FReturnUrl%2525252525253D%252525252525252Fsblreport%252525252525252FAccount%252525252525252FLogin%252525252525253FReturnUrl%252525252525253D%25252525252525252Fsblreport%25252525252525252FAccount%25252525252525252FLogin%25252525252525253FReturnUrl%25252525252525253D%2525252525252525252Fsblreport%2525252525252525252FAccount%2525252525252525252FLogin%2525252525252525253FReturnUrl%2525252525252525253D%252525252525252525252Fsblreport%252525252525252525252FAccount%252525252525252525252FLogin%252525252525252525253FReturnUrl%252525252525252525253D%25252525252525252525252Fsblreport%25252525252525252525252FAccount%25252525252525252525252FLogin%25252525252525252525253FReturnUrl%25252525252525252525253D%2525252525252525252525252Fsblreport%2525252525252525252525252FAccount%2525252525252525252525252FLogin%2525252525252525252525253FReturnUrl%2525252525252525252525253D%252525252525252525252525252Fsblreport%252525252525252525252525252FAccount%252525252525252525252525252FLogin%252525252525252525252525253FReturnUrl%252525252525252525252525253D%25252525252525252525252525252Fsblreport%25252525252525252525252525252FAccount%25252525252525252525252525252FLogin%25252525252525252525252525253FReturnUrl%25252525252525252525252525253D%2525252525252525252525252525252Fsblreport%2525252525252525252525252525252FAccount%2525252525252525252525252525252FLogin%2525252525252525252525252525253FReturnUrl%2525252525252525252525252525253D%252525252525252525252525252525252Fsblreport%252525252525252525252525252525252FHome%252525252525252525252525252525252FSBL_Statement%252525252525252525252525252525253Fclient%252525252525252525252525252525253D%2525252525252525252525252525252526date%252525252525252525252525252525253D10-Apr-2019”
    We have already add 4 managed handler (*.Web, *.rpx, *.rdlx, .*rdl) on our web application. (as show in "server_setup.png")

    Our server env.
    - IIS 7.5
    - .Net FrameWork 4.6.2

    Thank you.


  • Replied 11 April 2019, 7:32 pm EST

    Hello,

    Could you please share the web.config file and image of all dll reference of AR.

    Thanks.
  • Replied 11 April 2019, 8:00 pm EST

    Hi

    Send for web.config and image of all ddl in server and in project solution ddl referrence.







    Thanks.
  • Replied 11 April 2019, 8:02 pm EST

    Hello,

    Could you please send the Web.Config file in the zip format. Because it supports image and Zip format only.

    Thanks.
  • Replied 11 April 2019, 8:54 pm EST

    Please see in zip file

    Web.zip
  • Replied 14 April 2019, 5:38 pm EST

    Hello,

    Could you please try with the following http handler:

    <add name="ActiveReport13_rdl" path="*.rdl" verb="*" type="GrapeCity.ActiveReports.Web.Handlers.RdlxHandler, GrapeCity.ActiveReports.Web" resourceType="Unspecified" preCondition="integratedMode" />
    <add name="ActiveReport13_rdlx" path="*.rdlx" verb="*" type="GrapeCity.ActiveReports.Web.Handlers.RdlxHandler, GrapeCity.ActiveReports.Web" resourceType="Unspecified" preCondition="integratedMode" />
    <add name="ActiveReport13_rpx" path="*.rpx" verb="*" type="GrapeCity.ActiveReports.Web.Handlers.RpxHandler" resourceType="Unspecified" preCondition="integratedMode" />
    <add name="ActiveReport13_Web" path="*.Web" verb="*" type="GrapeCity.ActiveReports.Web.Handlers.WebCacheAccessHandler, GrapeCity.ActiveReports.Web" resourceType="Unspecified" preCondition="integratedMode" />


    Hope it helps.

    Thanks,
  • Marked as Answer

    Replied 17 April 2019, 12:24 am EST

    Hi

    I found that the problem is missing "licenses.licx.GrapeCity.Licenses.dll" on our web application.
    After place this .dll file, it work fine.

    Many thanks for your support.
