Multicolor in same chart

Multicolor in same chart

Posted by: nzd on 10 May 2021, 9:23 pm EST

•

  nzd

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 10 May 2021, 9:23 pm EST - Updated 29 September 2022, 12:49 am EST

  Hello,

  Is it possible to change the color (in this case) for each year?

  Example:

  2013 = red;

  2014 = blue;

  2015 = yellow;

  2016 = green;

  BR,

  Nikolas

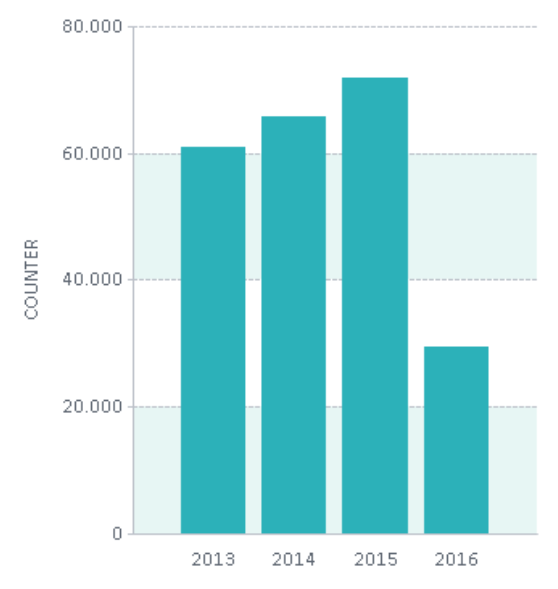

  558×589 16.1 KB

•

  manish.gupta



  • Post Options:
  • Link
    Copy

  Posted 10 May 2021, 10:18 pm EST

  Hi Nikolas,

  We are sorry, in the FlexChart, the same series can’t have the different color. We have created an enhancement for the same so that it can be reviewed by the concerned team and may be added in the future releases with the internal tracking id C1-3183.

  Regards,

  Manish Gupta

•

  nzd

  • Post Options:
  • Link
    Copy

  Posted 10 May 2021, 10:35 pm EST

  Hi Manish,

  Is it possible to do it with unbound, like we did with FlexGrid?

  Or is unbound not a possibilite on FlexChart?

  I’m currently having this issue with:

  FlexChart and FlexPie

  BR,

  Nikolas

•

  nzd

  • Post Options:
  • Link
    Copy

  Posted 10 May 2021, 11:33 pm EST

  Hi Manish,

  Another question, is there animations available, or will there be later on?

  BR,

  Nikolas

•

  manish.gupta



  • Post Options:
  • Link
    Copy

  Posted 12 May 2021, 6:33 pm EST

  Hi Nikolas,

  We are sorry for the inconvenience, Animation is not supported for the Chart as of now. We have logged an enhancement request with the internal tracking id C1-3184.

  Also, the FlexChart does not allow unbound binding same as the FlexGrid.

  Regards,

  Manish Gupta

•

  manish.gupta



  • Post Options:
  • Link
    Copy

  Posted 4 February 2022, 7:22 pm EST

  Hi,

  The Animation feature has been introduced in the latest build 2021v3 release. Please refer to the following demo sample:

  https://www.grapecity.com/componentone/demos/blazor/blazorexplorer/FlexChart/Animation

  Regards,

  Manish Gupta

•

  manish.gupta



  • Post Options:
  • Link
    Copy

  Posted 23 June 2022, 12:18 am EST

  Hi

  You can specify a color for data points using the series SymbolRendering event.

  <FlexChart ..>
      <SeriesCollection>
          <Series .. SymbolRendering="SymbolRendering" />
      </SeriesCollection>
  </FlexChart>
     void SymbolRendering(object p, RenderSymbolEventArgs e)
     {
          e.Engine.SetFill( e.Index % 2 == 1 ?
              System.Drawing.Color.Blue.ToArgb() : System.Drawing.Color.Red.ToArgb());
     }


•

  nzd

  • Post Options:
  • Link
    Copy

  Posted 23 June 2022, 12:21 am EST

  Hello,

  Thanks for the update, will try it out later.

  Regards,

  Nikolas
