Checkbox on 300 dpi

Posted by: tosch on 17 February 2020, 11:50 pm EST

  • Posted 17 February 2020, 11:50 pm EST

    On a screen with 300dpi the checkbox looks really bad.
    Is there a way to get a better quality image in a checkbox celltype?


  • Replied 19 February 2020, 9:53 pm EST


    I don't see the problem with Spread.Net13 in a 300 DPI environment. What is the spread version that you are using?
    Can you try to test your application with Spread.Net10 v3/+ with .Net F/w > 4.7 ?
    Also, see if the following helps:
    Add the following line to the app's config file:
    <add key="EnableWindowsFormsHighDpiAutoResizing" value="true" />

  • Replied 19 February 2020, 10:01 pm EST

    sorry forgot to mention that we are still using 11.45.20183.0.
    Is the appsettings key also supported in V11.45?

  • Replied 23 February 2020, 10:22 pm EST


    As you are using Spreadv11, you should not face the issue. If you create a simple application (drag drop FpSpread onto form, bind it to include a CheckBox field) then executing it over a high DPI environment, do you still face the issue? If not, could you share a stripped down version of your application.

  • Replied 23 February 2020, 11:03 pm EST

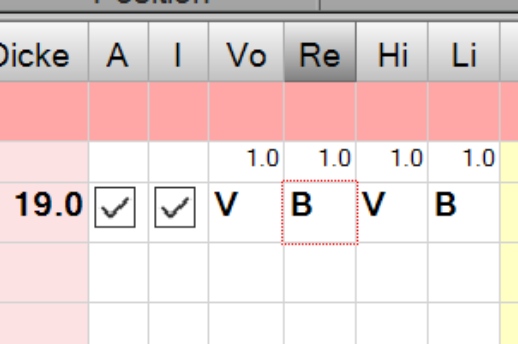

    Here is a little sample app and a screenshot on how it looks on 300dpi.

  • Replied 23 February 2020, 11:05 pm EST

    you have to download the screenshot to see that the checkbox looks funny.

  • Replied 25 February 2020, 1:21 am EST

    Hello Thomas,

    Unfortunately, I still could not replicate the issue. See attached image.
    I executed your application over Win7 having 300+ DPI and using Spread 11.45.20183.0.
    Were you/anyone else able to observe this issue over any other environment? To continue further, we need to first replicate the issue in order to assist you effectively.

  • Replied 25 February 2020, 1:29 am EST

    Did you run the sample on Win10?

  • Marked as Answer

    Replied 26 February 2020, 2:04 am EST

    Yes, I checked the issue over Windows10 and the checkbox looks proper.
