Add a chart using ReactJS

Add a chart using ReactJS

Posted by: jerome on 17 March 2020, 9:01 am EST

•

  jerome

  • Post Options:
  • Link
    Copy

  Posted 17 March 2020, 9:01 am EST - Updated 3 October 2022, 1:26 am EST

  is there any sample script for embedding the chart in SpreadJS13 ? btw im using ReactJS , anyhelp would appreciate

  this is the error we encountered, is there any library to be add ? thanks





  798×701 76.5 KB

•

  sharad.tomer



  • Post Options:
  • Link
    Copy

  Posted 17 March 2020, 4:16 pm EST

  Hi Jerome,

  For adding charts support, we need to add the “@grapecity/spread-sheets-charts” package to our application too. Please refer to the following sample and let us know if you face any issues:

  https://codesandbox.io/s/interesting-morse-d3qdk

  Regards

  Sharad

•

  jerome

  • Post Options:
  • Link
    Copy

  Posted 18 March 2020, 6:51 am EST

  got it thanks i try this one first

•

  jerome

  • Post Options:
  • Link
    Copy

  Posted 18 March 2020, 7:28 am EST - Updated 3 October 2022, 1:26 am EST

  i followed the link you provided but seems theres error i encounter ?





  1360×708 91.6 KB

•

  sharad.tomer



  • Post Options:
  • Link
    Copy

  Posted 18 March 2020, 7:53 pm EST

  Hi Jerome,

  Have you imported the charts module in your component like the following code snippet:

  import * as GC from "@grapecity/spread-sheets";
  import "@grapecity/spread-sheets-charts";


  If yes, please share a sample that replicates the issue so that we could further investigate it and assist you accordingly.

•

  jerome

  • Post Options:
  • Link
    Copy

  Posted 18 March 2020, 8:55 pm EST - Updated 3 October 2022, 1:27 am EST

  hello tomer, yes i import that already, first i install that via yarn ,

  yarn add @grapecity/spread-sheets-charts and it add on the package.json



  1230×406 46.6 KB

  ,

  then i create a separate file for that spreadsheet,



  1062×480 48.7 KB

  and call that clusteredBarCharts function for testing to render a sample chart



  1562×1090 84.1 KB

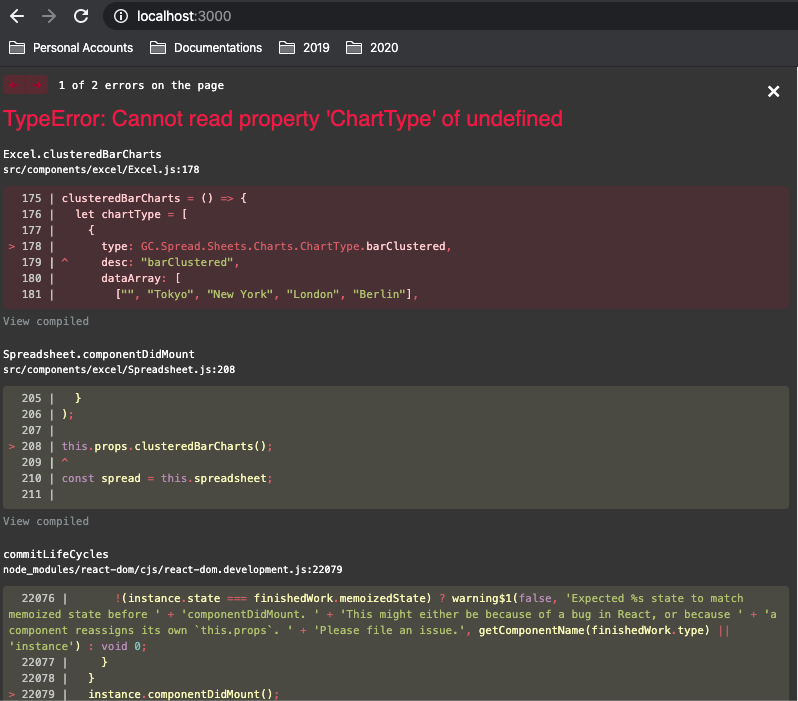

  then this error i encountered



  1360×708 91.6 KB

•

  sharad.tomer



  • Post Options:
  • Link
    Copy

  Posted 19 March 2020, 4:18 pm EST

  In the shared screenshot, the version of the @grapecity/spread-sheets-react used is 13.0.3 whereas the version used for @grapecity/spread-sheets-charts package is 13.0.7. Please make sure that you are using the same version of both the packages.

•

  jerome

  • Post Options:
  • Link
    Copy

  Posted 19 March 2020, 9:34 pm EST - Updated 3 October 2022, 1:27 am EST

  Nice!!!

  Very thankful @sharad.tomer



  810×689 113 KB
