With C1GridView if a column is fixed, the rows are not aligned

With C1GridView if a column is fixed, the rows are not aligned

Posted by: imoroni on 2 March 2021, 8:47 pm EST

•

  imoroni

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 2 March 2021, 8:47 pm EST - Updated 30 September 2022, 12:38 am EST

  Hi, I have a problem with the ComponentOne C1GridView table.

  The problem is that when I use the Fixed columns property, the right rows and the left rows are misaligned.

  The code I use is this:


  <%@ Register Assembly="C1.Web.UI.Controls.3" Namespace="C1.Web.UI.Controls.C1GridView" TagPrefix="cc1" %>
  ...
  <cc1:C1GridView ID="griglia_voti" runat="server" AllowColMoving="False"
                                  AllowColSizing="False" CssClass="griglia"
                                  AutoGenerateColumns="False" AllowSorting="False"
                                  ShowFilter="False" AlternatingRowStyle-BackColor="#CCCCCC"
                                  VisualStyle="Office2007Black"
                                  VisualStylePath="~/C1WebControls/VisualStyles" CallbackOptions="None" Width="100%" SelectionMode="SingleCell"
                                  AllowKeyboardNavigation="True" DataKeyNames="numero" DefaultColumnWidth="120px" DefaultRowHeight="30px"
                                  AlternatingRowStyle-VerticalAlign="Middle" TabIndex="1" TabNavigation="GridNavigation"
                                  AutoGenerateSelectButton="False" EditRowStyle-BorderStyle="NotSet">
                                  <RowHeader Fixed="true" Visible="true">
                                  </RowHeader>
                                  <Columns>
                                  </Columns>
                                  <ScrollSettings ScrollMode="ScrollBar" ScrollOrientation="Horizontal" />
                              </cc1:C1GridView>



  then I fill the table via the code.

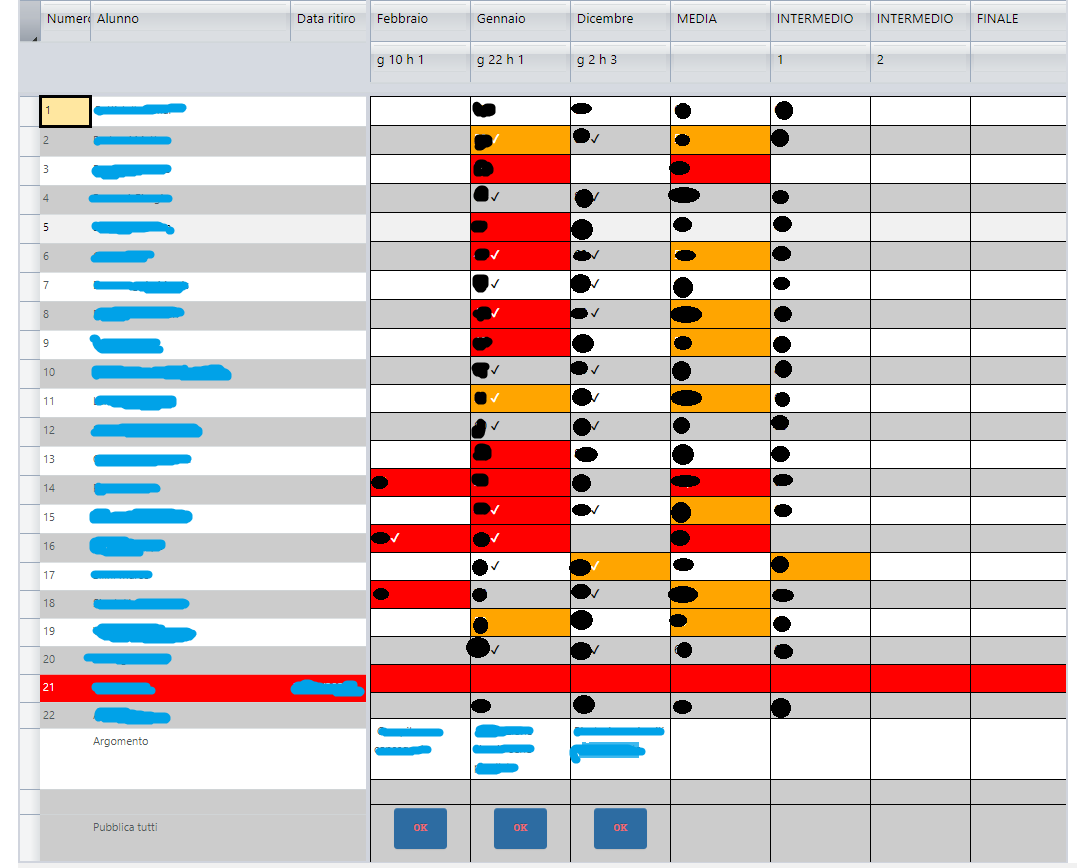

  As you can see from the images as I go down the alignment gets worse.





  1077×868 38.3 KB

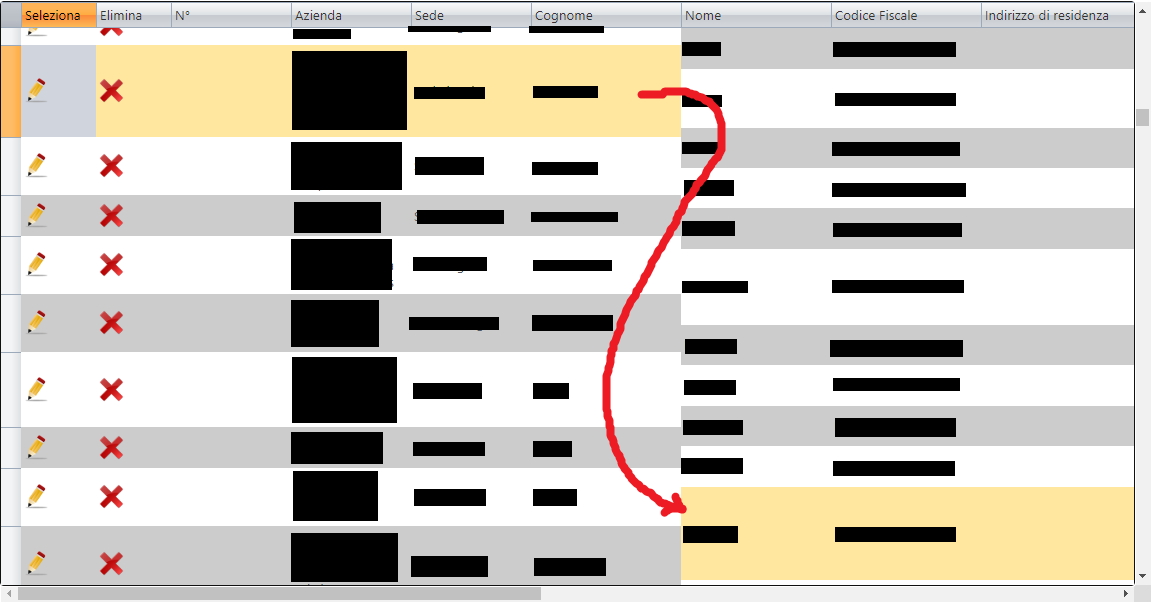

  Even if you go down a few hundred rows, the table becomes unreadable.





  1154×604 34.8 KB

  The images come from two different projects and occurs on any browser.

  In the first project the code is written in the VB language and I use Microsoft Visual Studio Professional 2017 and in the second project the code is written in the VB language and I use Microsoft Visual Studio 2008.

  So I ruled out that it had anything to do with this. I don’t know what could be causing this error. What can I do?

  Thanks in advance.

•

  manish.gupta



  • Post Options:
  • Link
    Copy

  Posted 4 March 2021, 2:08 am EST

  Hi,

  We are investigating on this case and we update you soon.

  Regards,

  Manish Gupta

•

  manish.gupta



  • Post Options:
  • Link
    Copy

  Posted 4 March 2021, 8:12 pm EST

  Hi Italo,

  You are using quite older product for which development and Support has been ended.

  However, we tried to replicate the issue at our end with the build version C1.Web.Ui.Controls.2011v1.204 but we are unable to replicate the issue.

  Please refer to attached sample for reference. Please also try to upgrade to the latest version according to your license. You may get the builds from the here:

  http://prerelease.componentone.com/dotnet20/c1webui/

  Hope it helps!

  Regards,

  Manish Gupta

  C1.Web.Ui.GridView-FreezeColumn_20111.204.zip
