Nested table expand/collapse on row click

Posted by: jmisquez on 30 May 2022, 7:58 pm EST

    • Post Options:
    • Link

    Posted 30 May 2022, 7:58 pm EST - Updated 3 October 2022, 2:56 am EST

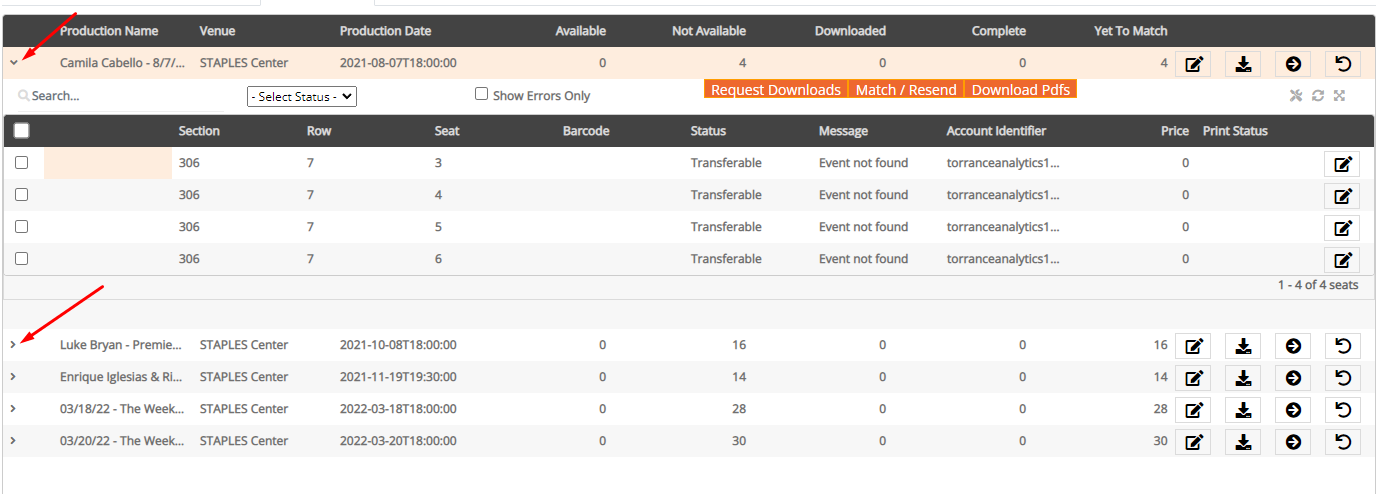

    Im trying to expand/collapse wjFlexGridDetail on row click but i cannot find a way to make it work, also i dont want the row header i want to make looks like normal color, something like this:

    the issue is that the ExpandSingle doesnt work because im handling the expand/collapse with a gridClickHandler event:

    html

     <wj-flex-grid
        #flex
        [itemsSource]="flexData"
        [isReadOnly]="isReadOnly"
        [alternatingRowStep]="alternatingRowStep"
        [showMarquee]="showMarquee"
        (initialized)="flexInitialized(flex)"
        (selectionChanged)="onSelectionChanged()"
        (click)="gridClickHandler($event,grid)"
        [itemFormatter]="itemFormatter">



    .ts


      public gridClickHandler(e: any, grid: any) {
        if (!this.flexGridDetail) return;
        const ht = grid.hitTest(e);
        const isButton = ['wj-cell-maker', 'fa'].some( (className: string) => ht.target.classList.contains(className));
        if (!isButton) {
          if (this.flexGridDetail.isDetailVisible(ht.row) && this.flexGridDetail.isDetailAvailable(ht.row)) {
            this.expandedRow = null;
            this.flexGridDetail.hideDetail(ht.row);
          } else {
            this.expandedRow = ht.row;
            this.flexGridDetail.showDetail(ht.row);
          }
        }
      }



    the issue with the code above is that the row.index increase when the rowDetail is displayed, so the row doesnt match as expected.

    so i want to make it that only one row can be visible at a time and make handle the toggle on row click, also i want to color the entire row when i hover or select, so if i add the rowHeader it doesnt color, i dont want this:

  • Posted 1 June 2022, 12:52 am EST

    Hello,

    Please refer to the sample link below demonstrating, how to add a custom expand/collapse icon on a column using templates:

    https://stackblitz.com/edit/angular-dc9ept?file=src%2Fapp%2Fapp.component.html

    Let us know if this works for you.

    Regards

  • Posted 1 June 2022, 5:10 pm EST - Updated 3 October 2022, 2:56 am EST

    I want to expand/collapse the nested grid when i click on the row, also i want to show a custom icon and i want that the entire row change color on hover and selection.

    so im facing 3 issues:

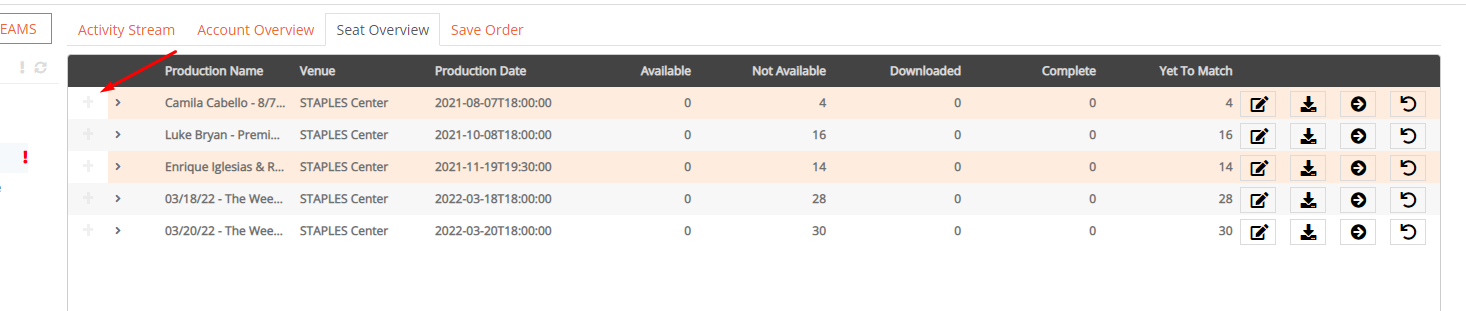

    1.- the RowHeaders doesn’t change color on Selection / Hover, example:

    Is there a way to change the Color of the RowHeader?

    2.- I want to expand or collapse the Row on Selection change, so the expected behaviour is to click in any place in the Row and expand or collapse the Details i already try with the gridClickHandler but when i try to use that i cannot use the “ExpandSingle” and i can open more than one RowDetails at the same time.

    3.- I want to focus to the current Row that is showing the details, scroll down or up to make the Selected Row to looks like the it was a Header / First Item of the grid.

    btw, the custom icon help me to change the +/- icon and use caret, thanks for that one

  • Posted 6 June 2022, 3:16 pm EST

    Hello,

    We apologize for the delayed response, you may refer to the sample link below demonstrating the above points:

    https://stackblitz.com/edit/angular-vmmbqc?file=src%2Fapp%2Fapp.component.ts

    Please let us know if you have any doubts.

    Regards
