ToolIconSize property does not work

ToolIconSize property does not work

Posted by: info on 21 January 2022, 11:04 pm EST

•

  info

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 21 January 2022, 11:04 pm EST - Updated 3 October 2022, 11:34 pm EST

  Hello.

  C1.WPF.Ribbon.Ja 6.0.20213.162

  Does the ToolIconSize property of C1ButtonTool work?

  I’d like to resize the path icon.

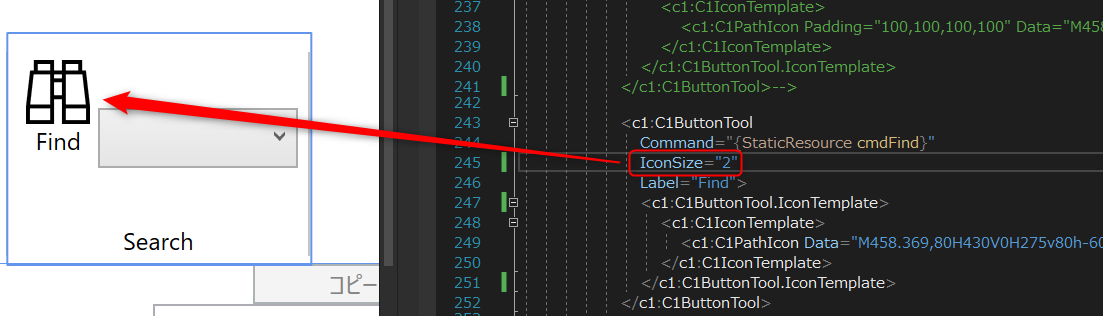

  1103×316 31.7 KB

•

  nitin.sharma



  • Post Options:
  • Link
    Copy

  Posted 23 January 2022, 7:29 pm EST

  Hello,

  Thanks for the snapshot.

  JFYI, IconSize can’t be used while using C1ButtonTool with C1Ribbon. The size is managed by C1Ribbon based on the visible region. You need to use C1ButtonTool’s LargeIconTemplate/SmallIconTemplate accordingly.

  You can refer here: https://www.grapecity.com/componentone/docs/wpf/online-ribbon5/buttons.html

  Please refer the attached sample for the same : ToolIconSizeDemo.zip

  Regards,

  Nitin
