LineChart not changing color

Posted by: ehh on 5 May 2021, 10:35 pm EST

  • Posted 5 May 2021, 10:35 pm EST

    Hello,

    Im trying to change the color of my LineChart, but it disappears. Ive tried with rgb, rgba, and named colors. It is working fine for bar and column Charts.

  • Marked as Answer

    Replied 9 May 2021, 2:58 pm EST

    Hi,

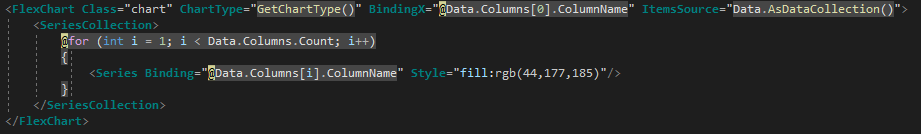

    When the ChartType is Line/LineSymbols, the line gets drawn and color is set using the stroke property. Please refer to the following code snippet:
    <FlexChart ItemsSource="forecasts"ChartType="ChartType.LineSymbols" BindingX="Date" Binding="TemperatureC">
    <SeriesCollection>
    <Series Binding="TemperatureC" Style="@("stroke:rgb(44,177,185);fill:rgb(44,177,190);")"></Series>
    </SeriesCollection>
    </FlexChart>


    Hope it helps!

    Regards,
    Manish Gupta
  • Replied 10 May 2021, 6:04 pm EST

    That did it! Thanks
