Auto Wrap text in flexgrid

Posted by: c_lynch on 9 September 2017, 8:21 am EST

  • Posted 9 September 2017, 8:21 am EST

    Hi,
    I have the following flexgrid:

    [code] <FlexGrid:C1FlexGrid
    Grid.Row="1"
    x:Name="_flex"
    SelectionMode="Row"
    AutoGenerateColumns="False"
    Margin="20 10 20 20"
    HeadersVisibility="Column"
    HeaderGridLinesBrush="#80ffffff"
    ColumnHeaderForeground="Orange"
    SelectionBackground="Orange"
    SelectionForeground="Black"
    CursorBackground="Orange"
    CursorForeground="Black" Xaml:C1NagScreen.Nag="True"
    >
    <FlexGrid:C1FlexGrid.Columns>
    <FlexGrid:Column Binding="{Binding Id}" Width="*"/>
    <FlexGrid:Column Binding="{Binding LogType}" Width="*"/>
    <FlexGrid:Column Binding="{Binding Text}" Width="4*"/>
    <FlexGrid:Column Binding="{Binding Email}" Width="*"/>
    <FlexGrid:Column Binding="{Binding created_at}" Width="*"/>
    </FlexGrid:C1FlexGrid.Columns>
    </FlexGrid:C1FlexGrid>[/code]



    The column {Binding Text} contains a lot of textual information and unfortunatley not all the info is being shown as the row does not autoresize itself to fit the content.

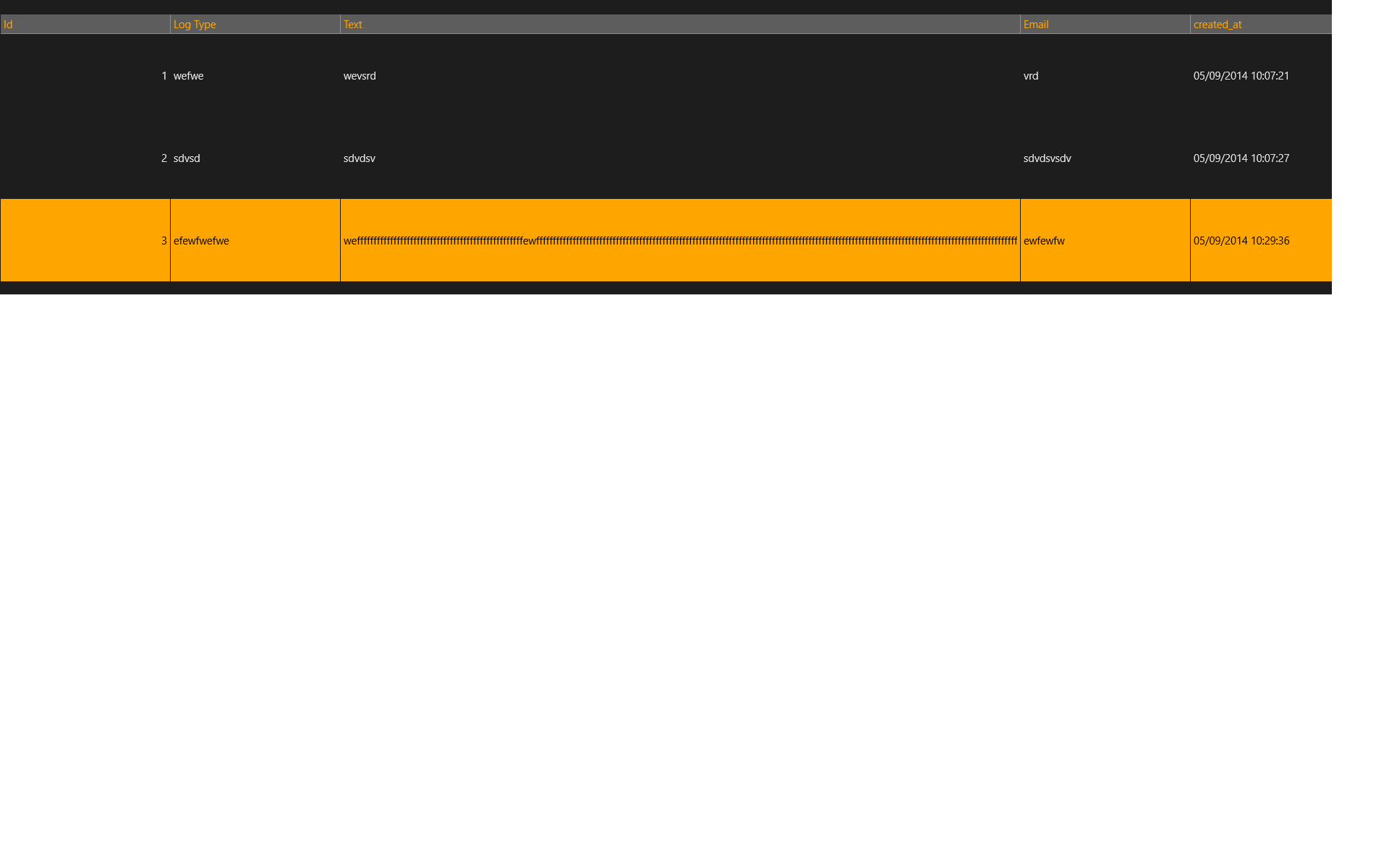

    I did try _flex.AutoSizeRows(0, _flex.Cells.Rows.Count-1, 100,true); in the .cs file but it only seems to make the rows height larger but not actually wrap the content. (see the attached screenshot)

    How can i enable the rows to autosize/autowrap to the content?

    Thanks for any help you can provide
    Chris

  • Replied 9 September 2017, 8:21 am EST



    <FlexGrid:C1FlexGrid
    Grid.Row="1"
    x:Name="_flex"
    SelectionMode="Row"
    AutoGenerateColumns="False"
    Margin="20 10 20 20"
    HeadersVisibility="Column"
    HeaderGridLinesBrush="#80ffffff"
    ColumnHeaderForeground="Orange"
    SelectionBackground="Orange"
    SelectionForeground="Black"
    CursorBackground="Orange"
    CursorForeground="Black" Xaml:C1NagScreen.Nag="True"
    >
    <FlexGrid:C1FlexGrid.Columns>
    <FlexGrid:Column Binding="{Binding Id}" Width="*"/>
    <FlexGrid:Column Binding="{Binding LogType}" Width="*"/>
    <FlexGrid:Column Binding="{Binding Text}" Width="4*"/>
    <FlexGrid:Column Binding="{Binding Email}" Width="*"/>
    <FlexGrid:Column Binding="{Binding created_at}" Width="*"/>
    </FlexGrid:C1FlexGrid.Columns>
    </FlexGrid:C1FlexGrid>
  • Replied 9 September 2017, 8:21 am EST

    Hello,

    You need to set TextWrapping for all or particular column to true for that matter as given below:-

    _flex.Columns[string column_Name].CellStyle.TextWrapping = true;

    Hope it helps.

    Thanks,
    Reeva
  • Marked as Answer

    Replied 9 September 2017, 8:21 am EST

    Reeva,
    Thank-you for the reply, I appreciate the help.

    Unfortunately your suggestion did not seem to work for me (null reference for CellStyle), I am new to C# and xaml so its possible I did something wrong.

    But using your suggestion I found the following did work for me:

    var wrapStyle = new C1.Xaml.FlexGrid.CellStyle();

    wrapStyle.TextWrapping = true;

    _flex.Columns["Text"].CellStyle = wrapStyle;
  • Replied 9 September 2017, 8:21 am EST

    Hello,

    Glad to know your issue is resolved.

    Thanks for contacting ComponentOne.

    Regards,
    Reeva
